Tesla Transformer

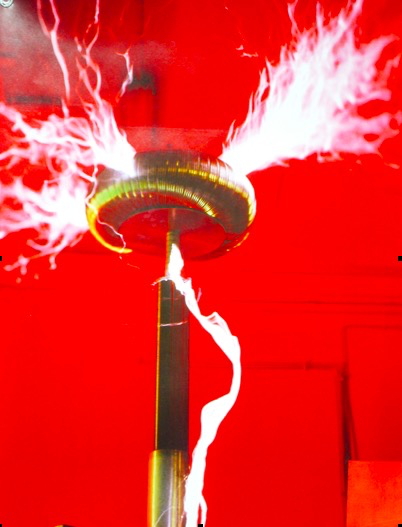

Tesla Discharge
CHARACTERISTICS:
  • Primary Trasformer: 8 KVrms, 4800 W (oil bath)
  • Primary Capacitor: 0,08 μF insulated up to 100 KV
  • Stored energy  in each half-period of 50Hz main-line: 5,8 J
  •  Power dissipated in each discharge (rate:100/s, duration: 150 μs): 380 KW
  • Secondary voltage: approx. 1.000.000 V
  • Dircharge length in air: about 2 m (noisy)

Tesla3

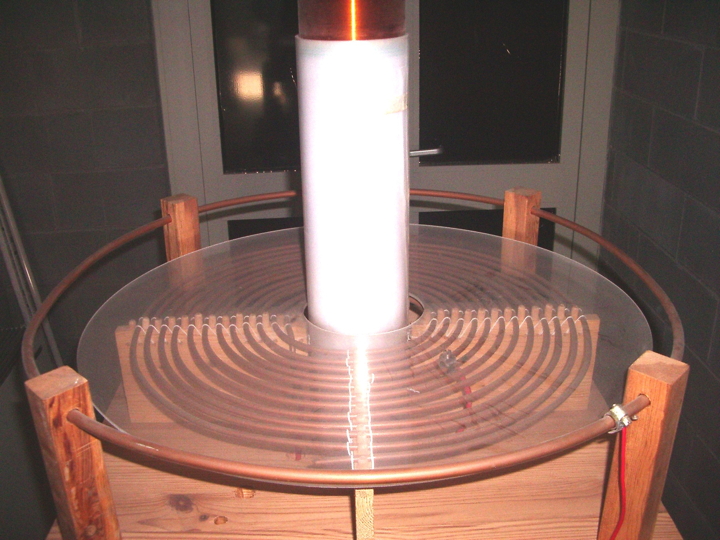

Primary coil in copper tube, tunable,with guard-ring earthed during measurements
Tesla2

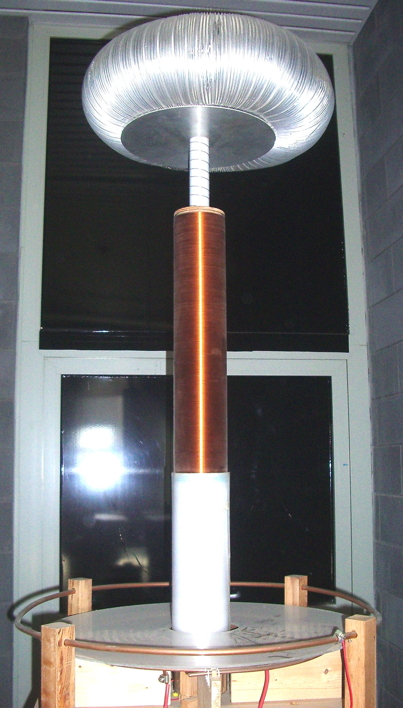

DESCRIPTION
  • Total height : 2,5 m
  • 3 safety controls
  • Remote controlled with safety key
  • Commands:  motor start, discharge
  • Synchronous Rotating Spark Gap air cooled

    •
Trasportable:
Power supply,  spark gap - capacitor - primary coil and secondary coil are separable
